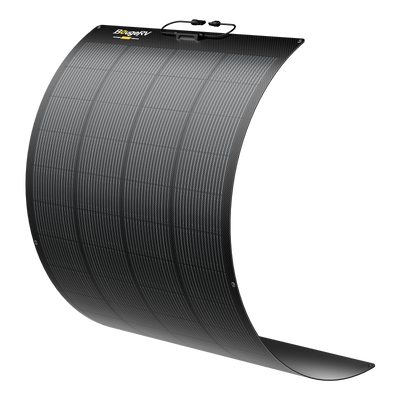

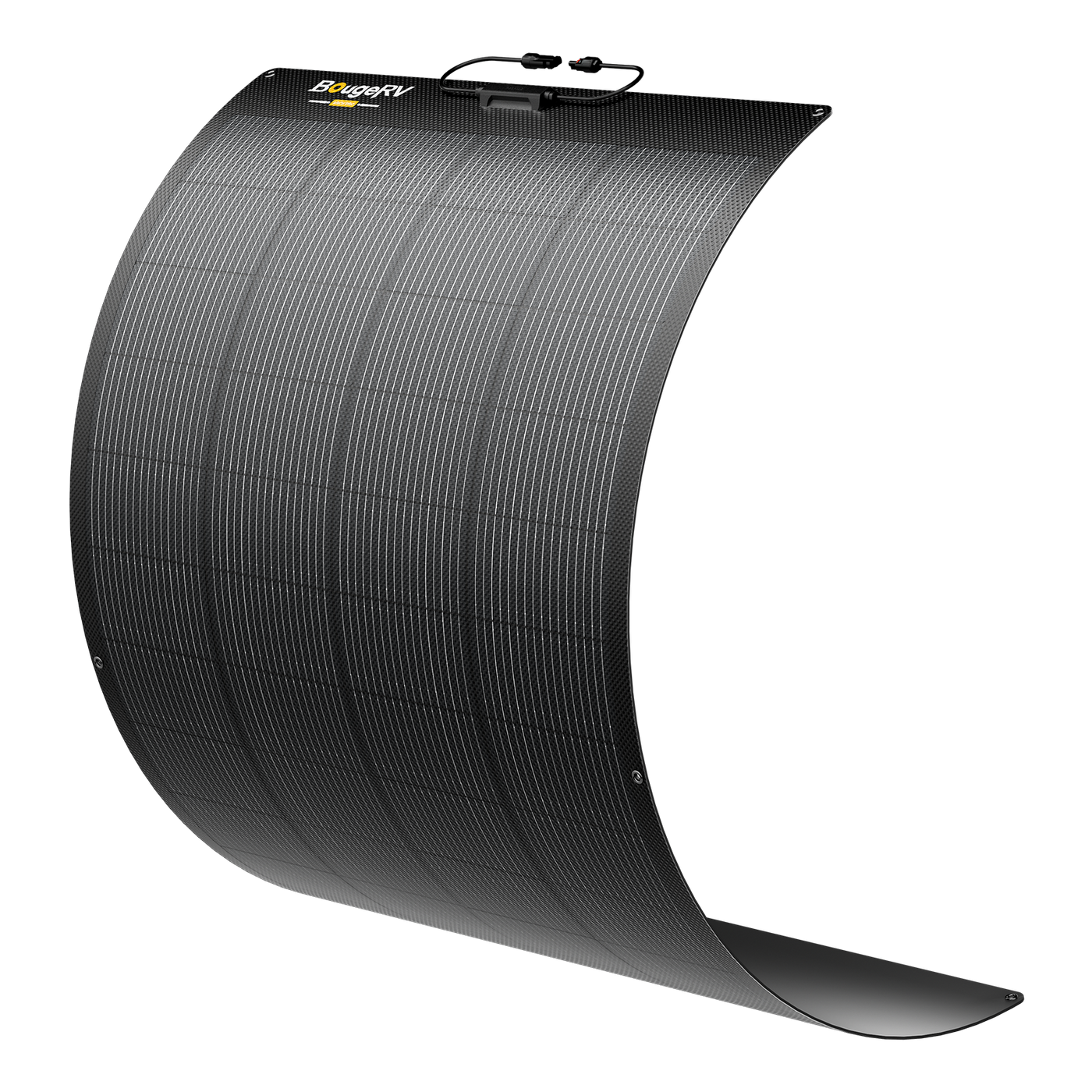

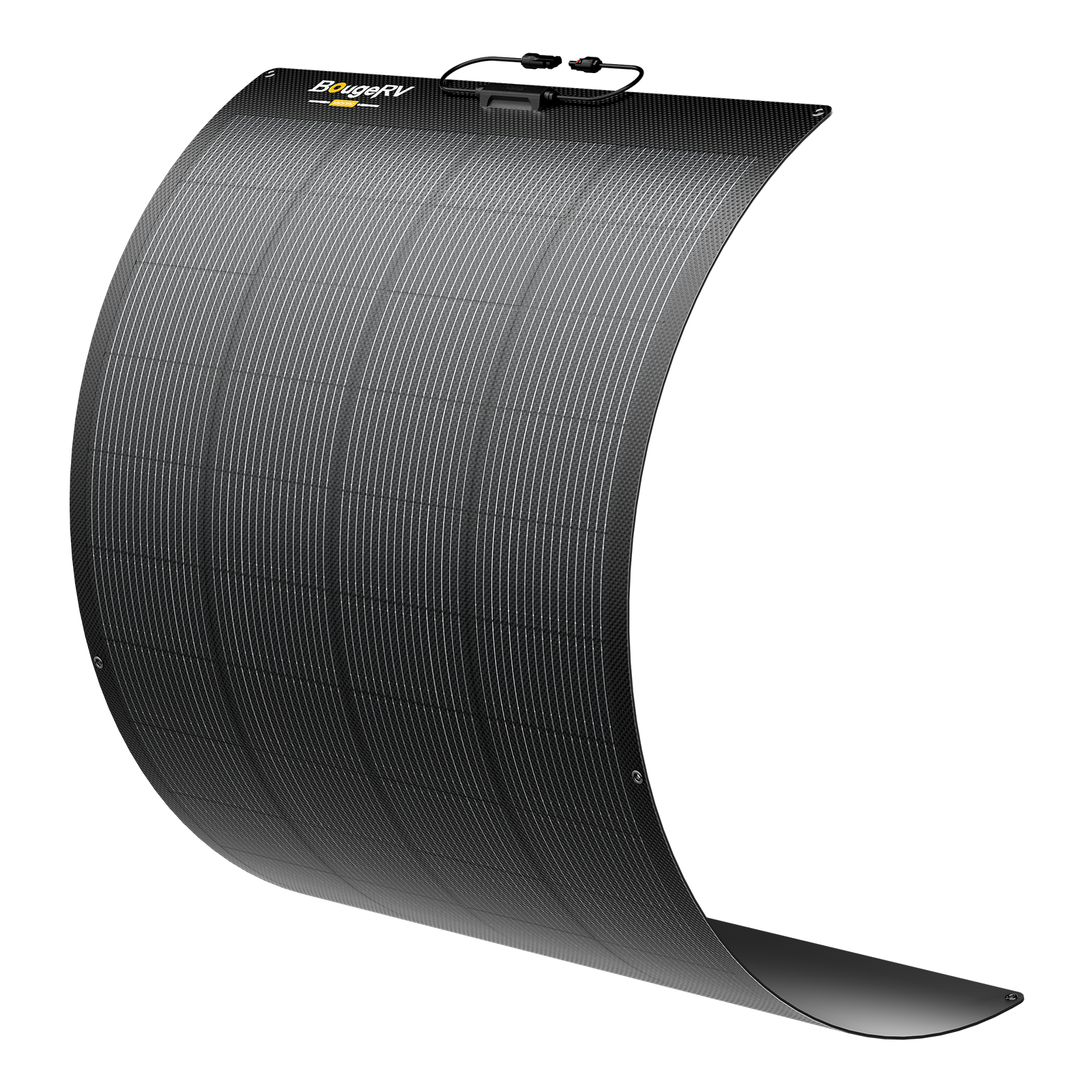

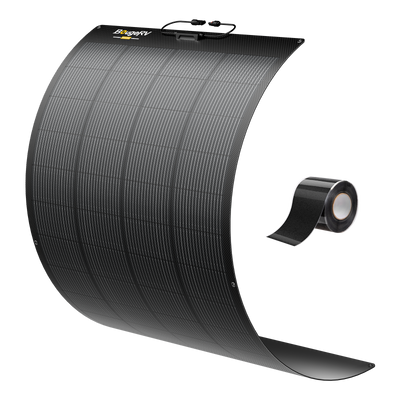

BougeRV Arch Pro 200W N-Type TOPCon Flexible Solar Panel (12/24V Compatible)

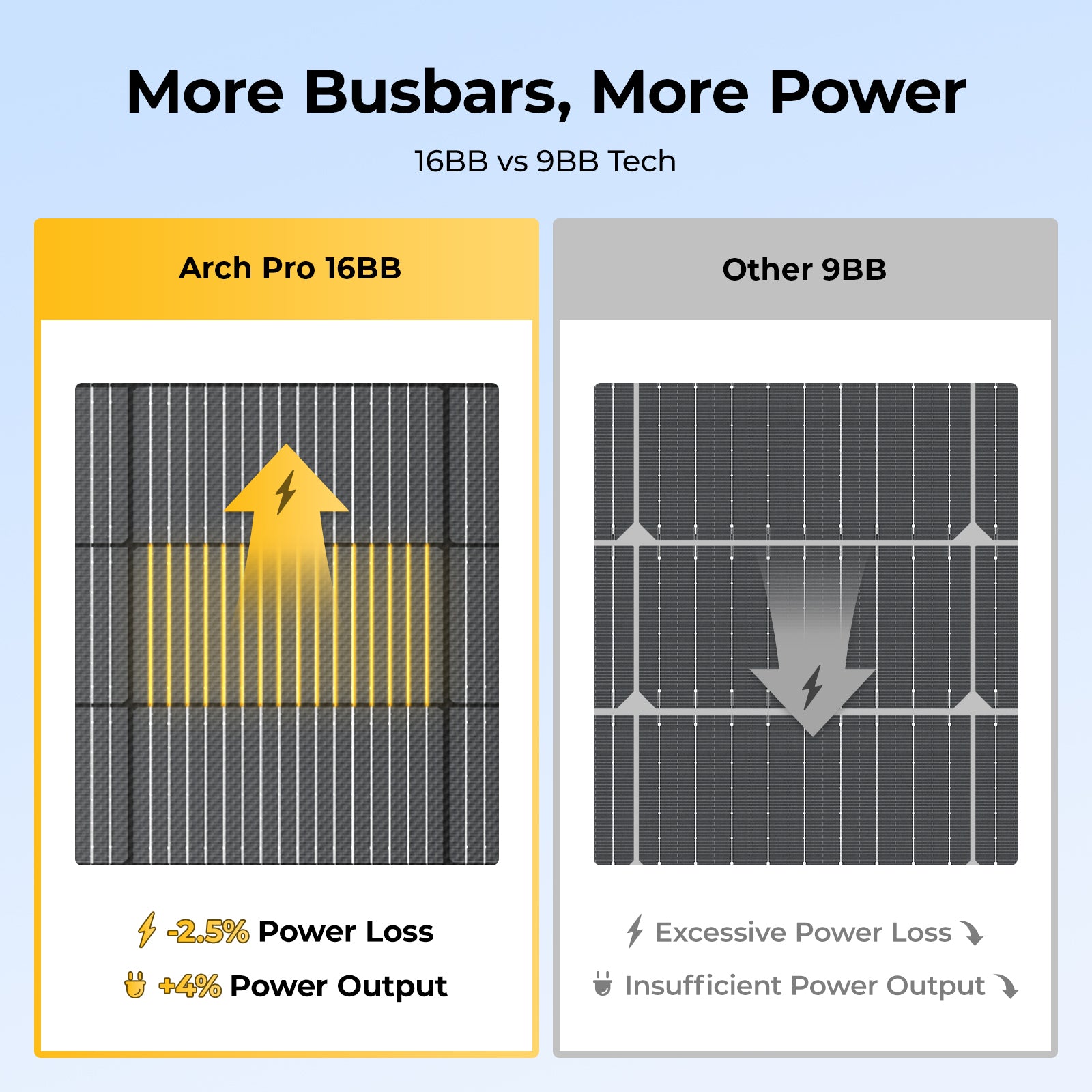

N-type curved 16bb flexible 25% Efficiency

🎃Halloween Sale

Save £70.00
£199.99

Limited time deal

£269.99
/
Price Inc. VAT

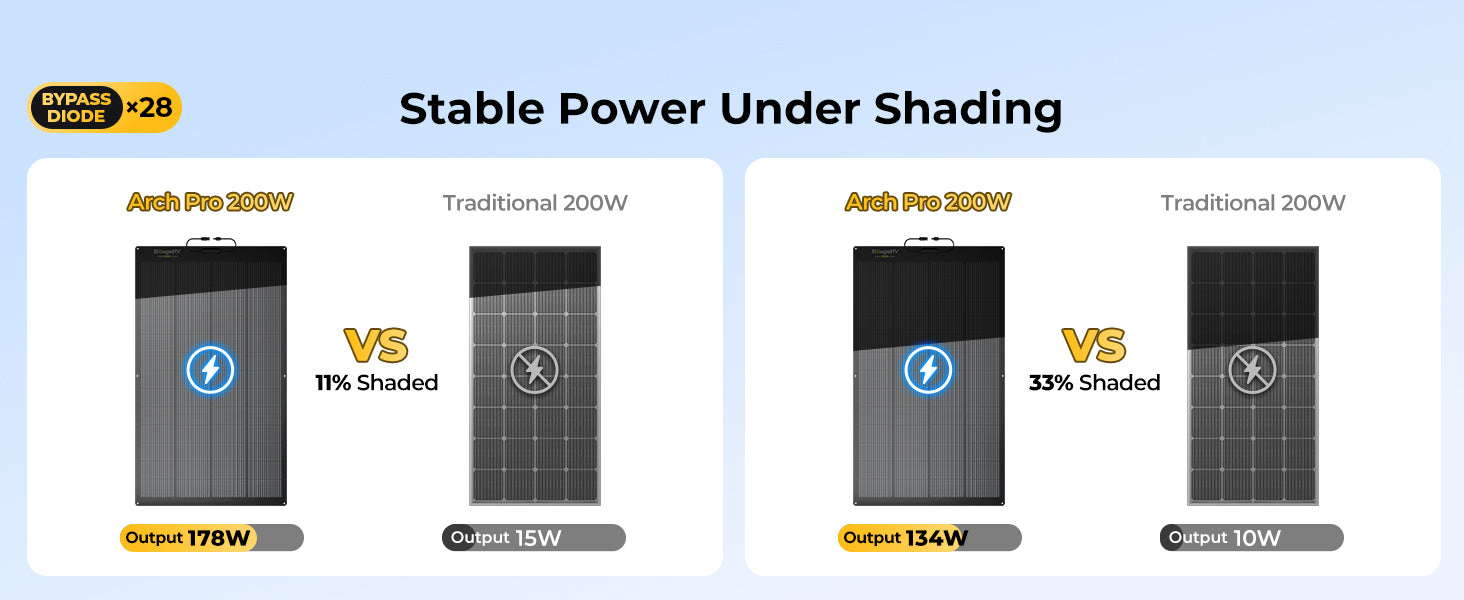

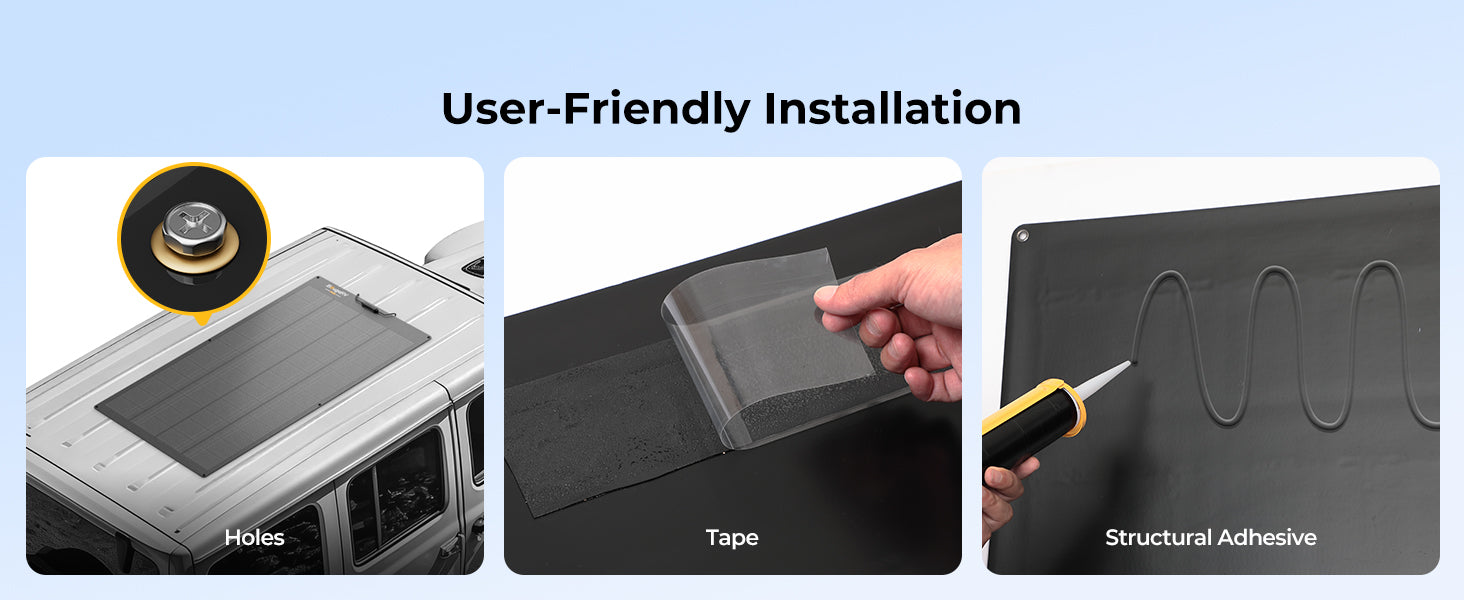

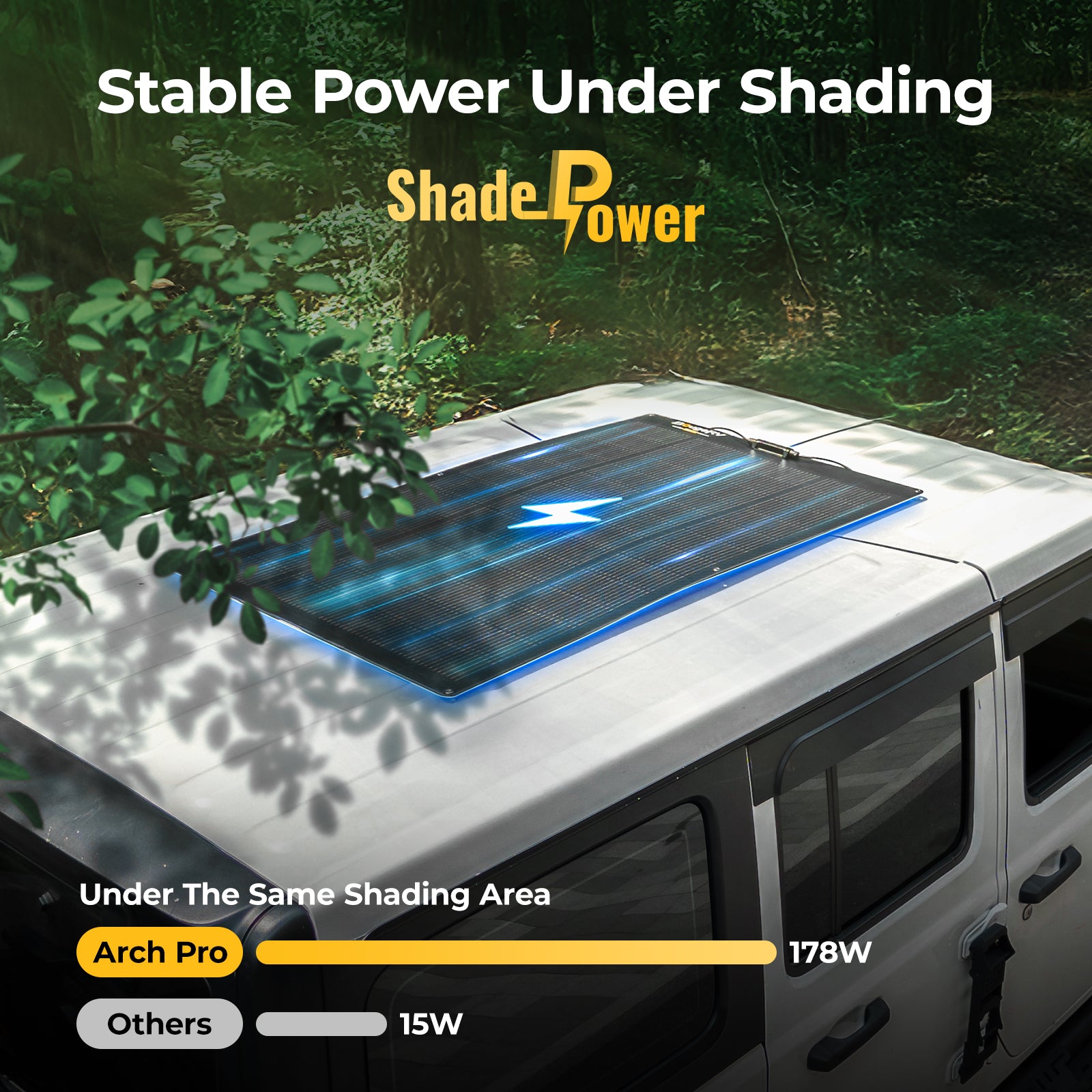

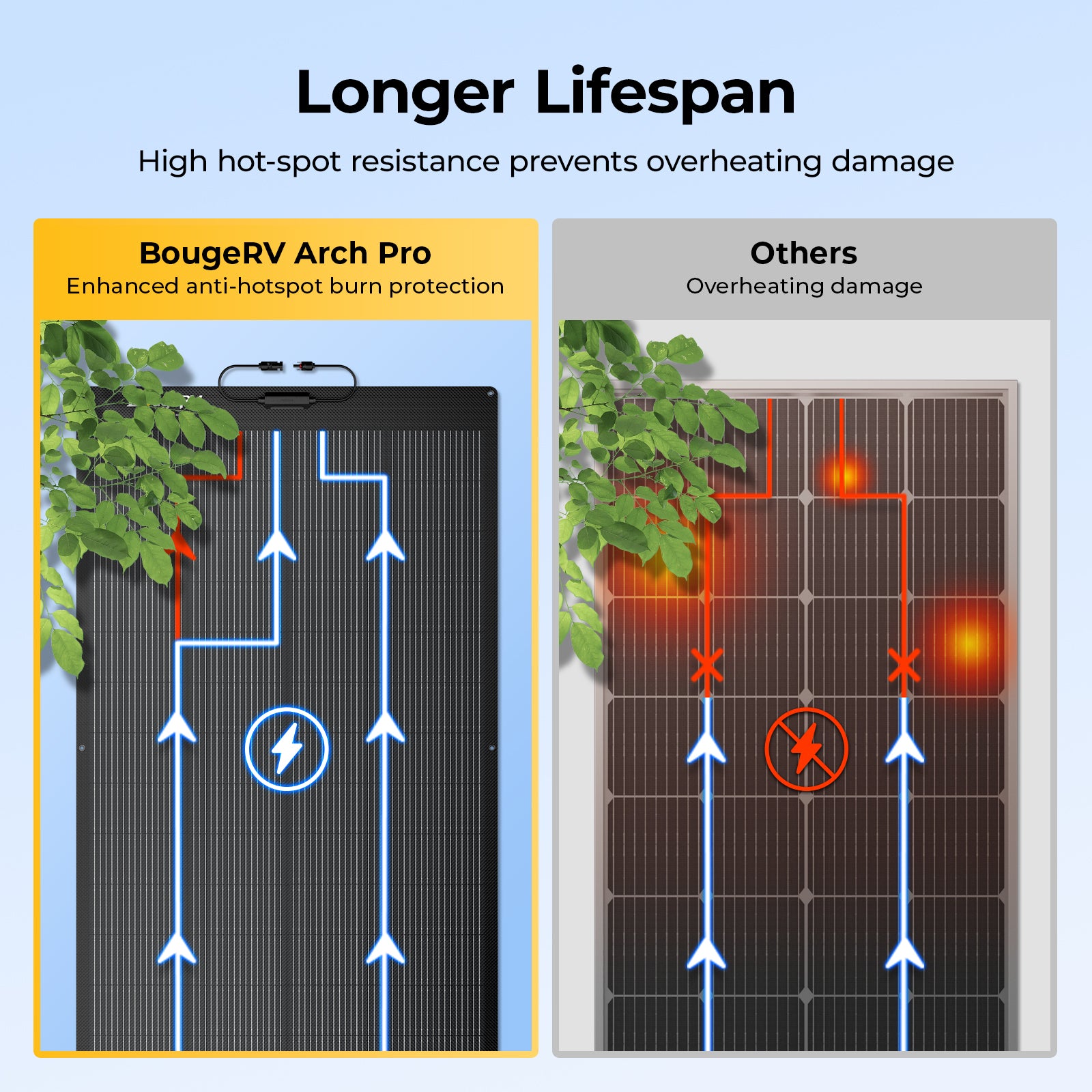

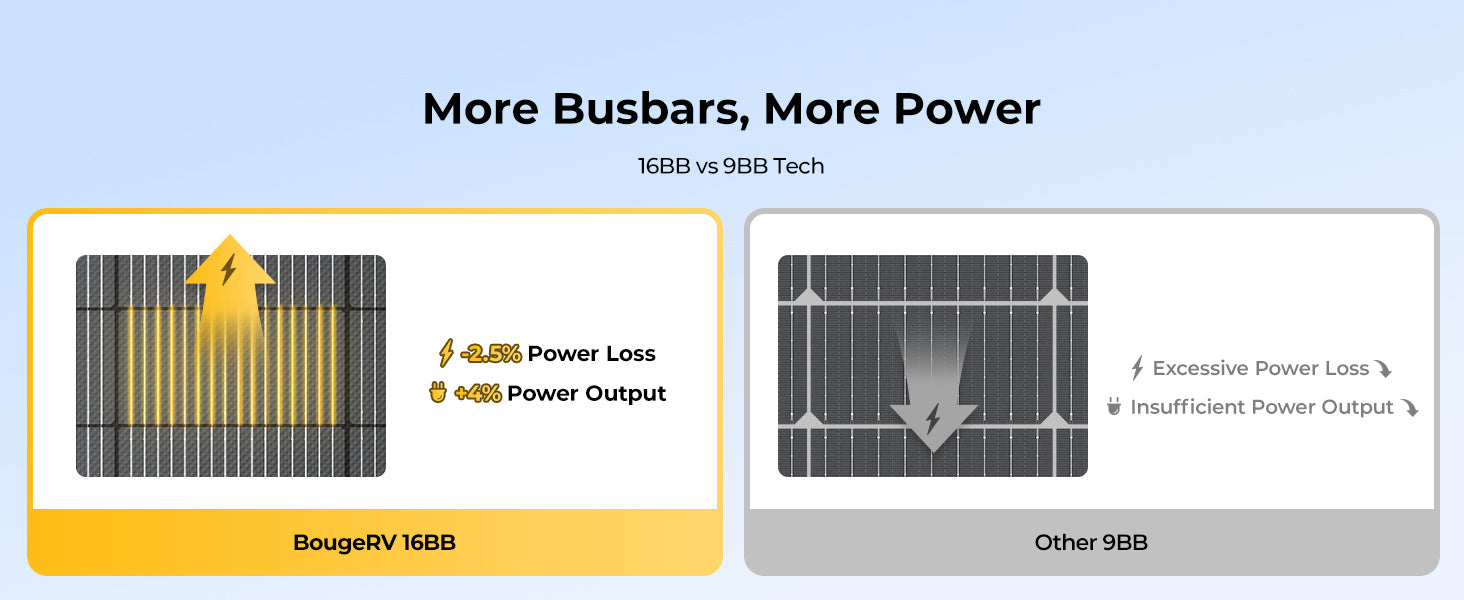

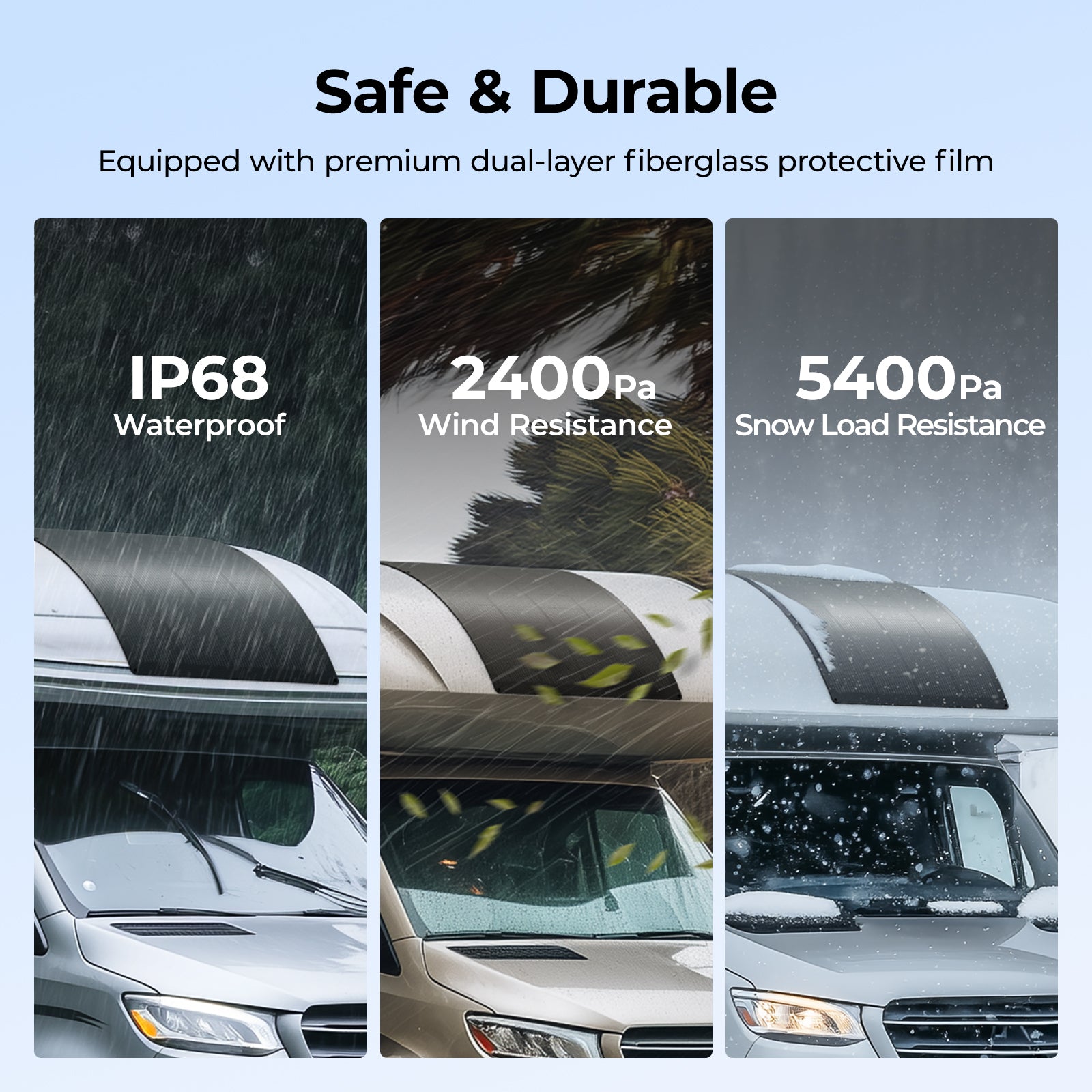

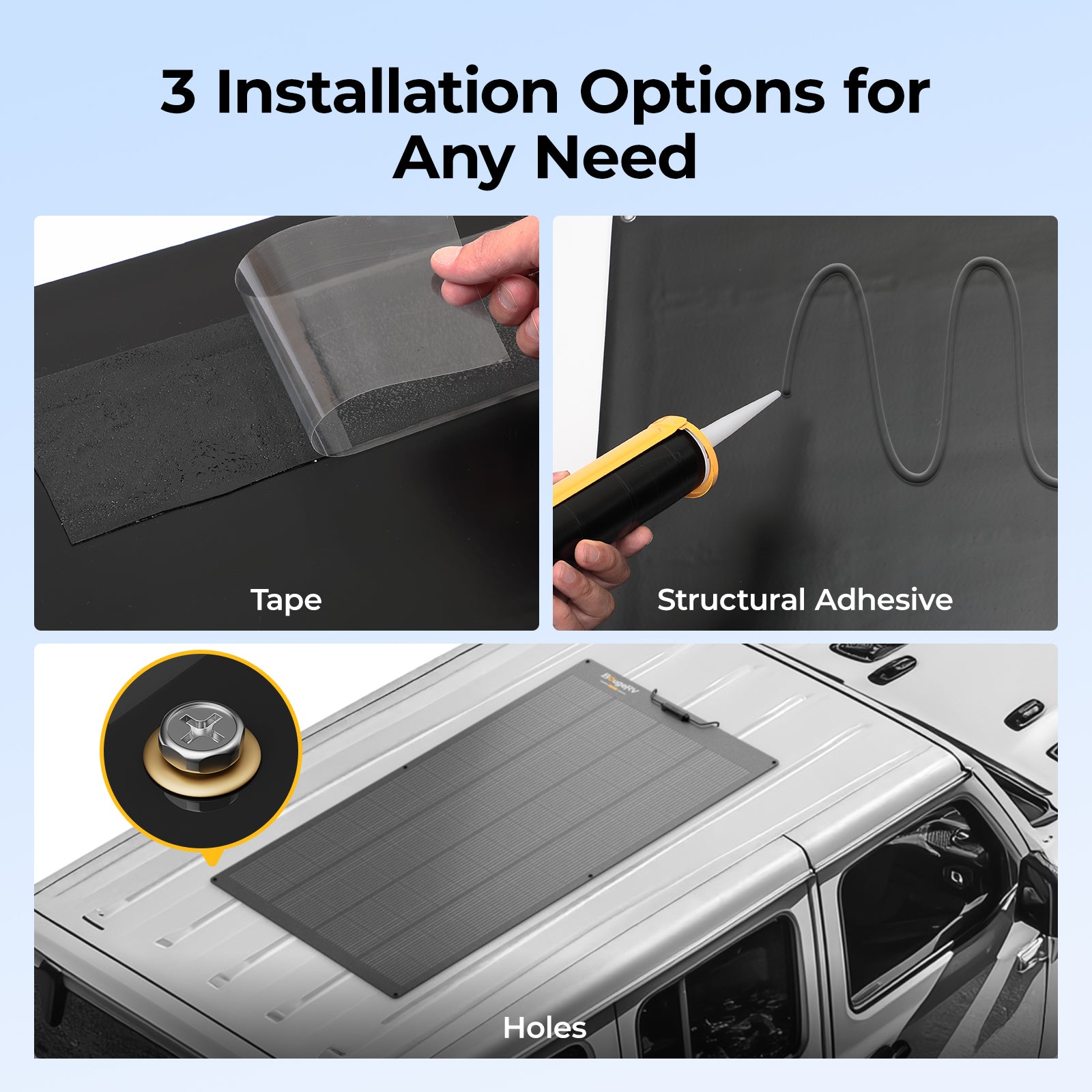

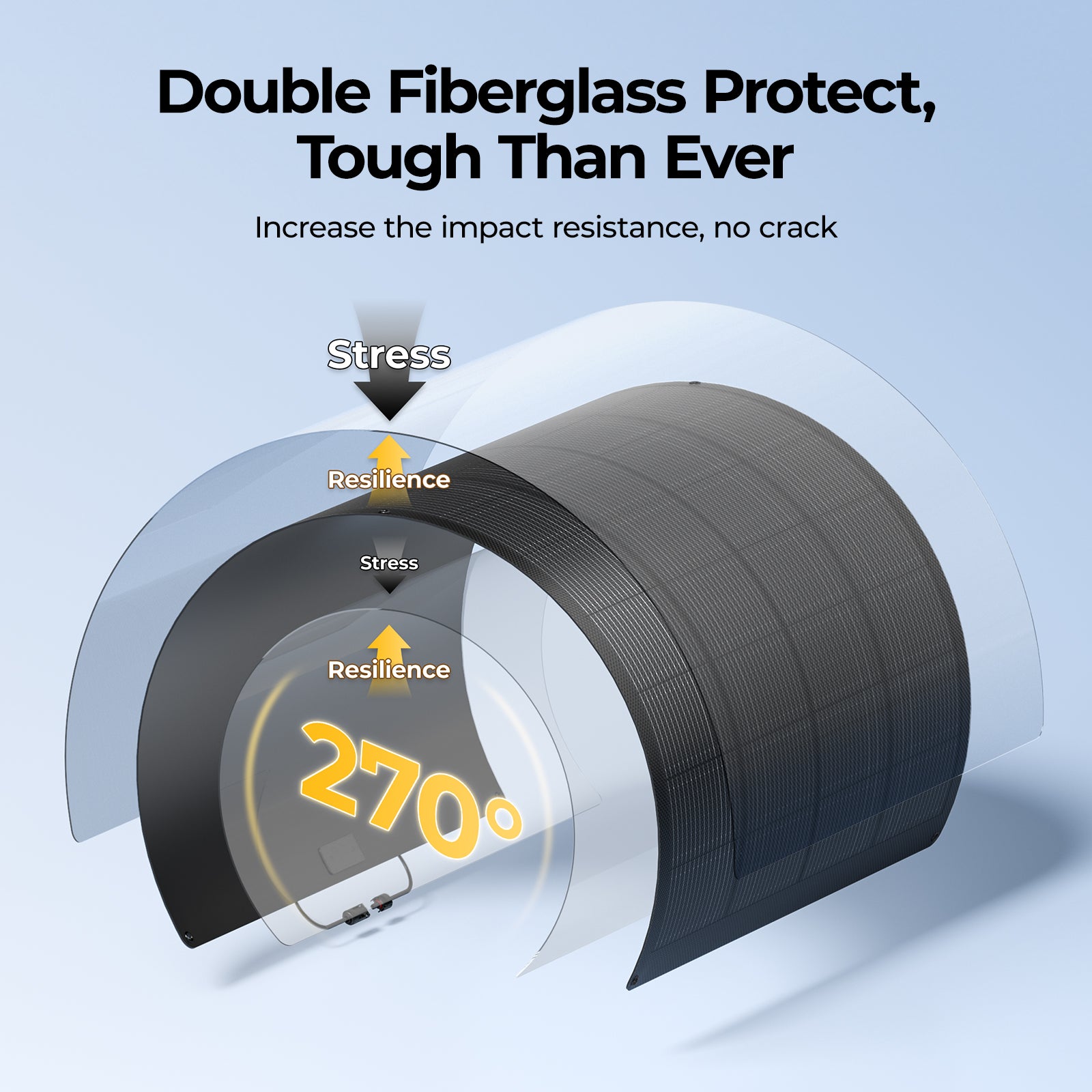

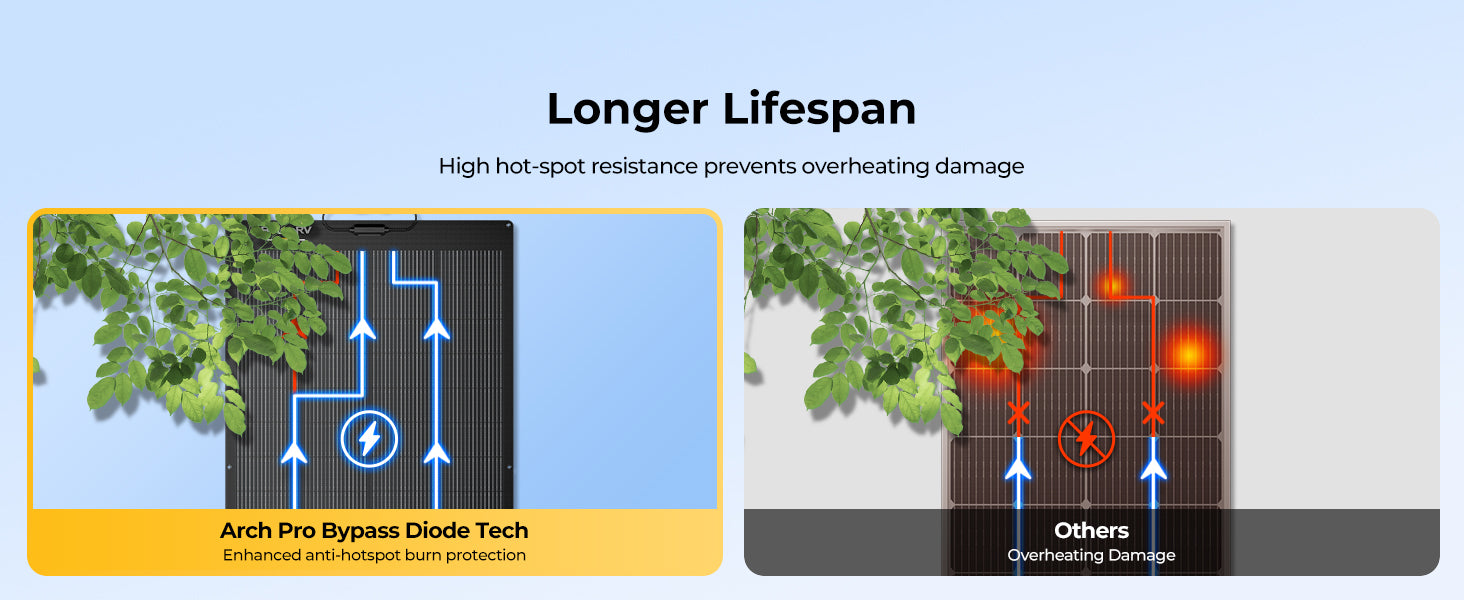

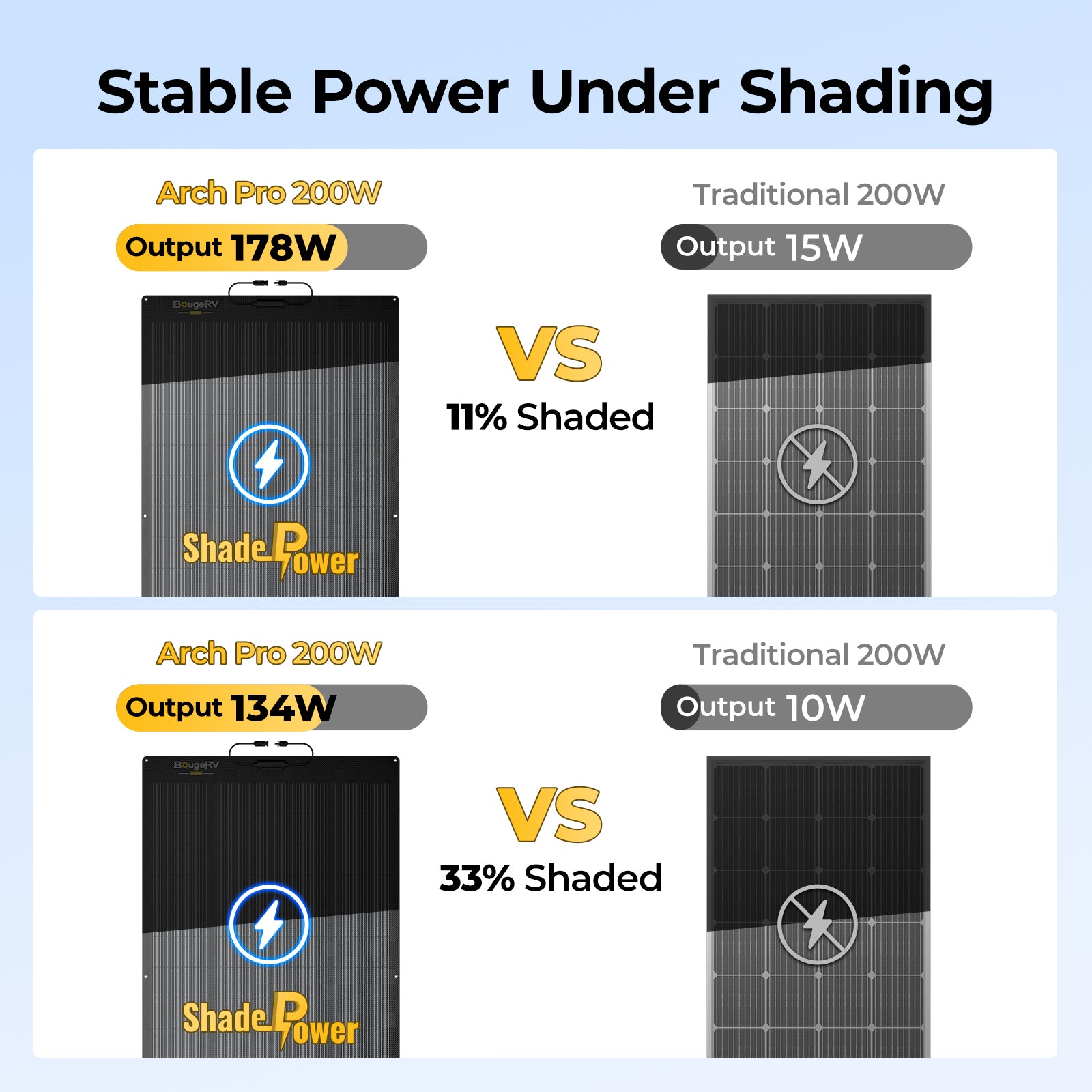

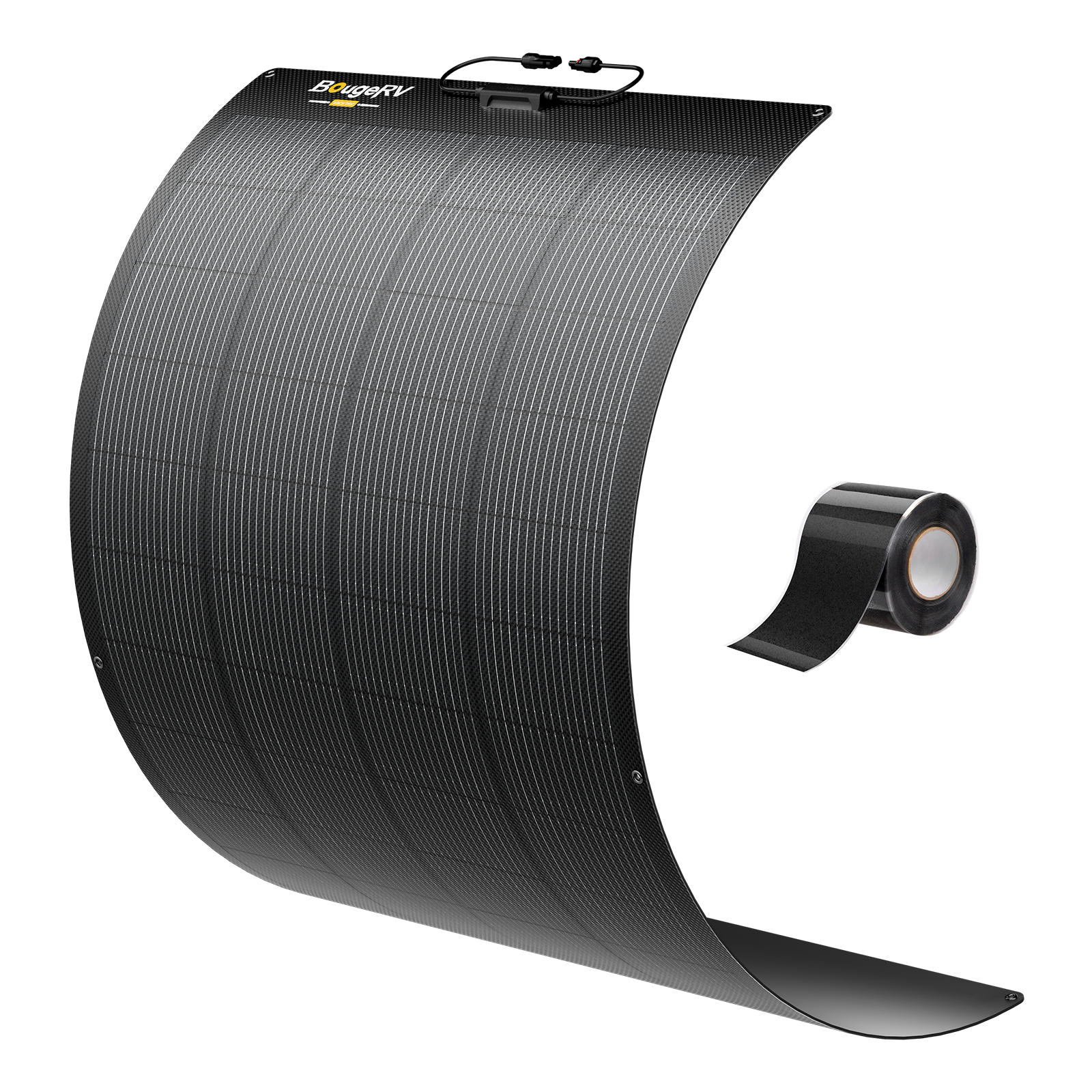

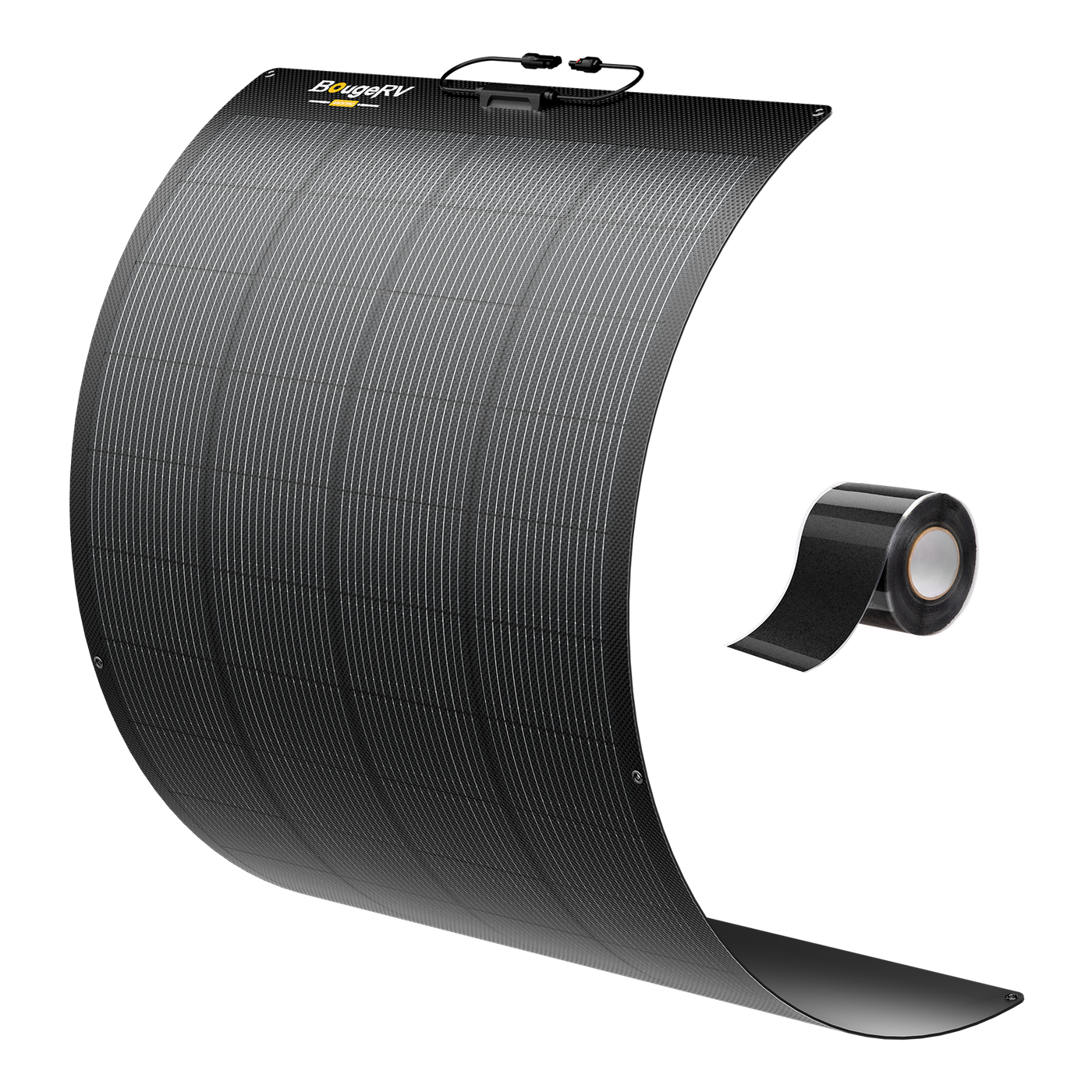

BougeRV Arch Pro 200W Flexible Solar Panel features advanced N-type TOPCon cells with 25% efficiency, 16BB for higher output, and anti-shading technology for stable power. Ultra-thin at just 7.9 lbs, it’s easy to install with tape, adhesive, or pre-drilled holes. Built with dual-layer fiberglass, IP68 waterproofing, and strong wind/snow resistance, this 200W solar panel is safe, durable, and flexible enough for curved or irregular surfaces—perfect for RVs, boats, and off-grid solar systems.

Read more » Fold up »

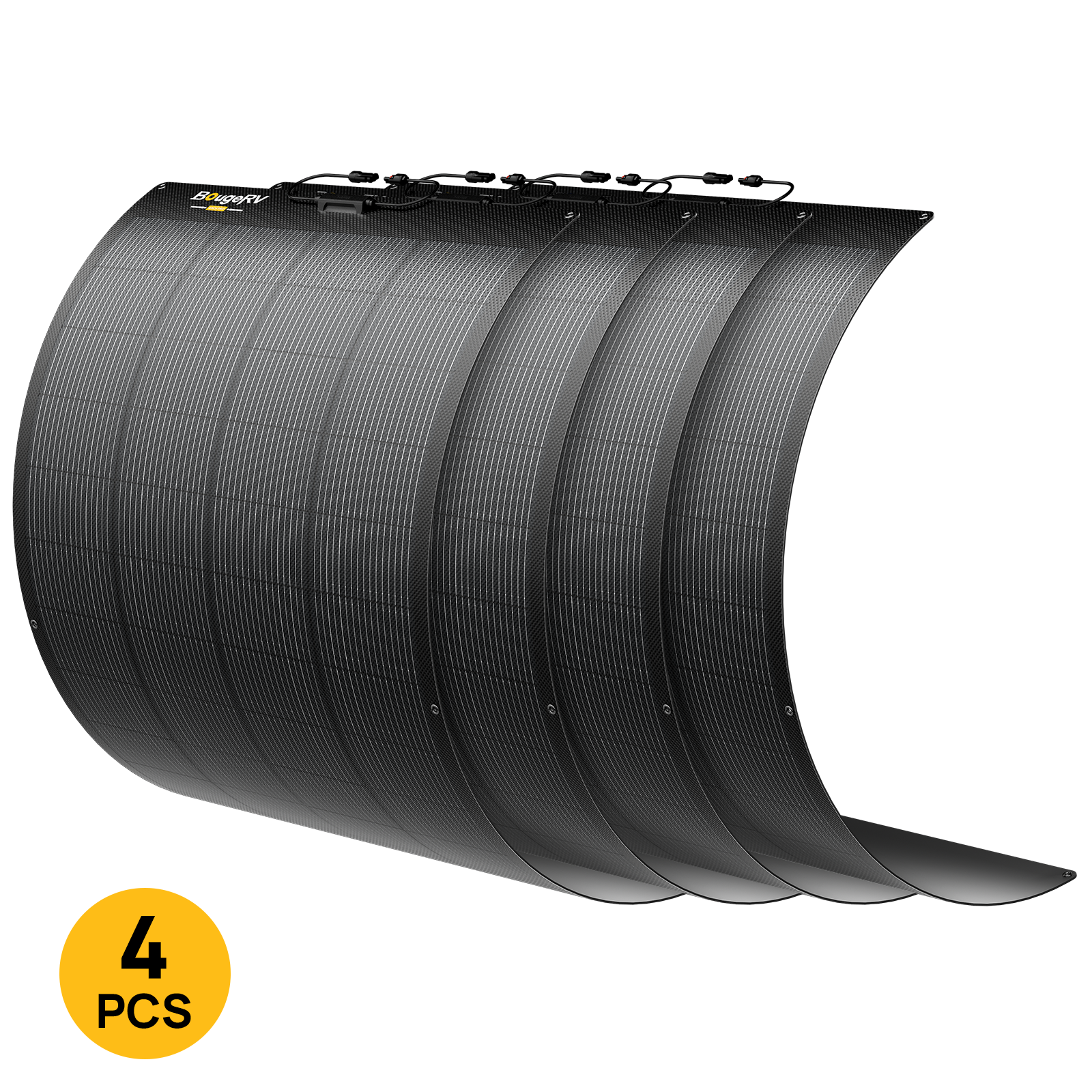

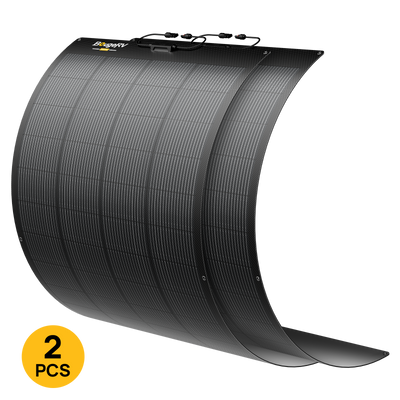

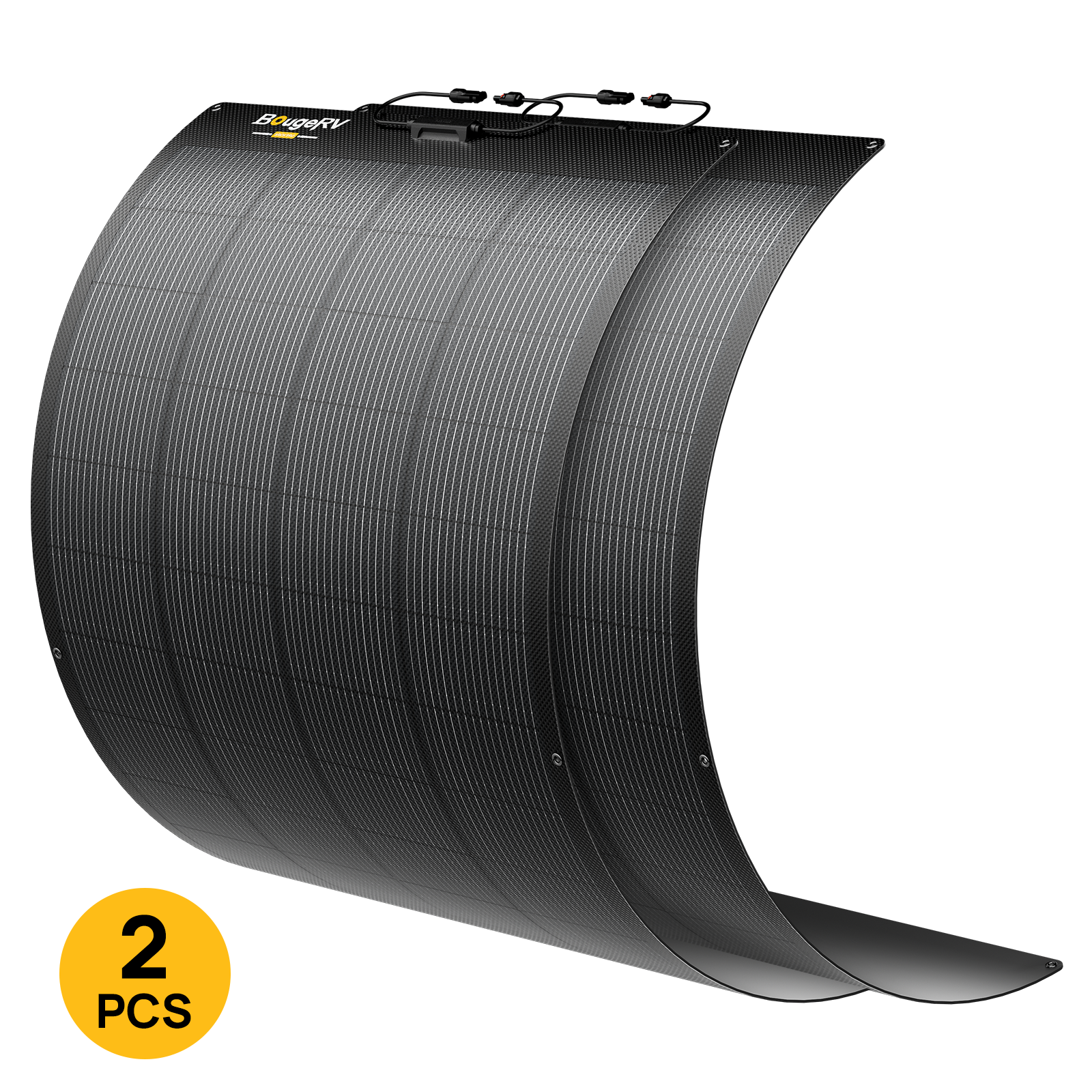

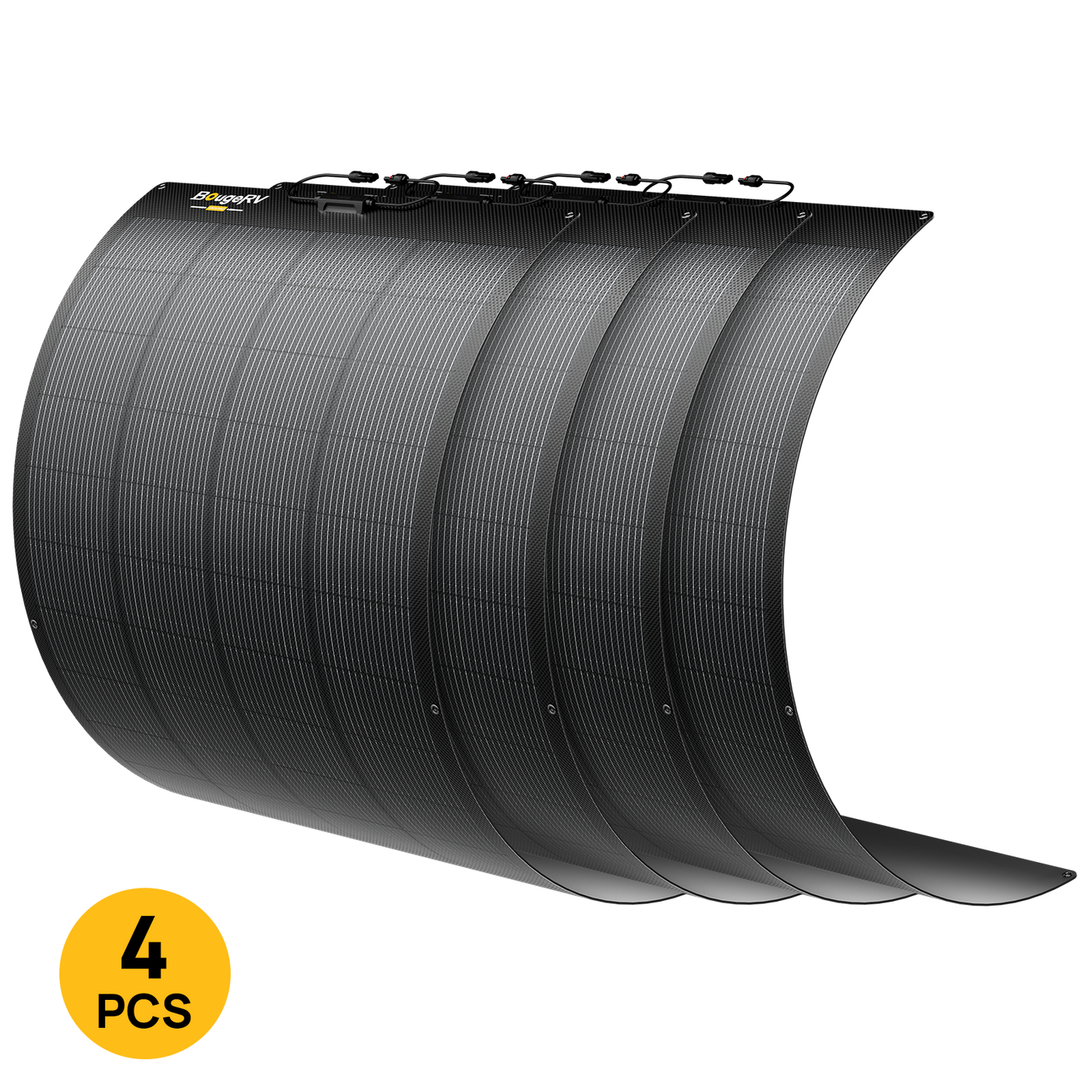

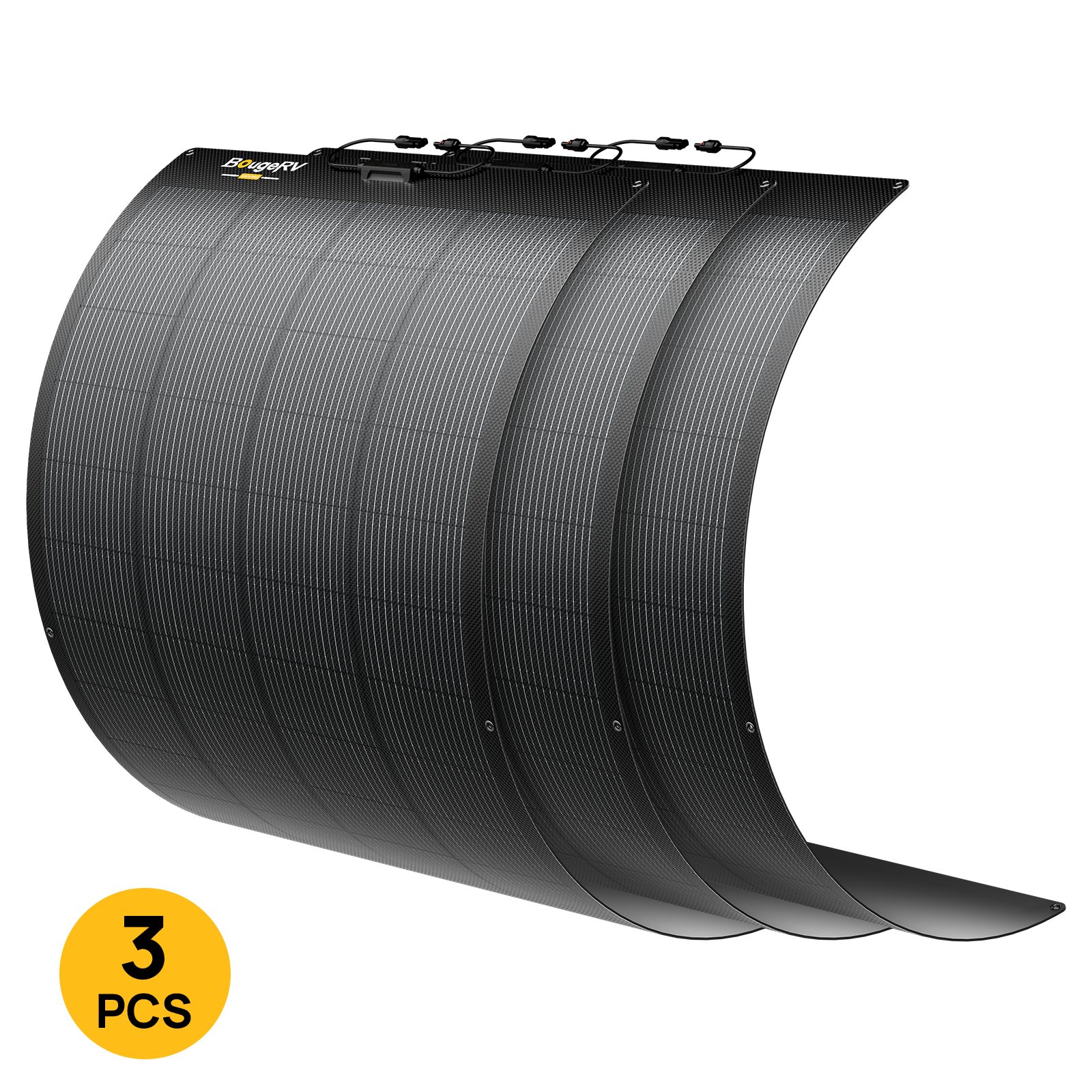

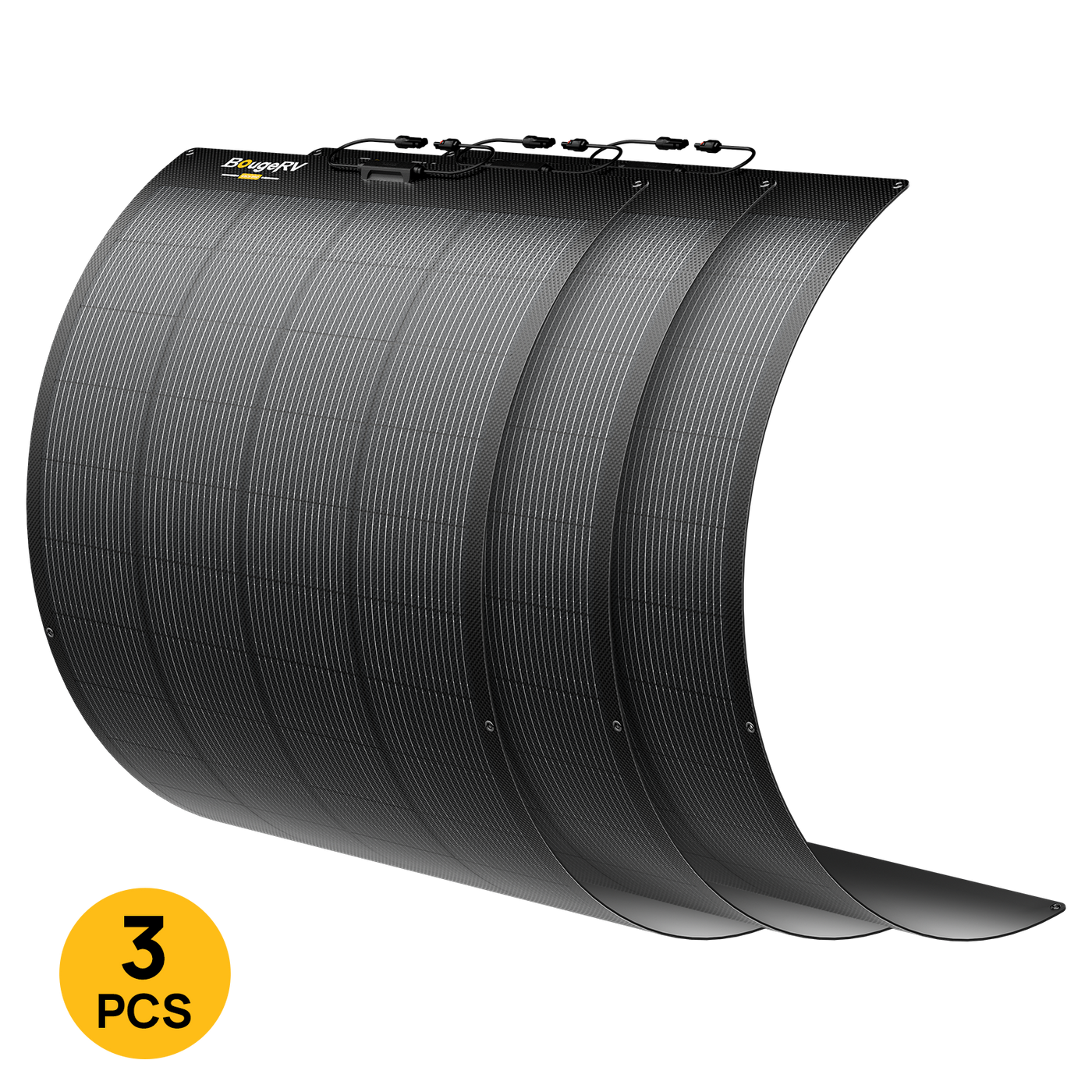

Buy More, Save More

Pay With Ease:

Payments icons

  • Features

  • Tech Specs

  • Reviews

HIGHLIGHTS

Multipurpose Use

PRODUCT SPECIFICATIONS

SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K

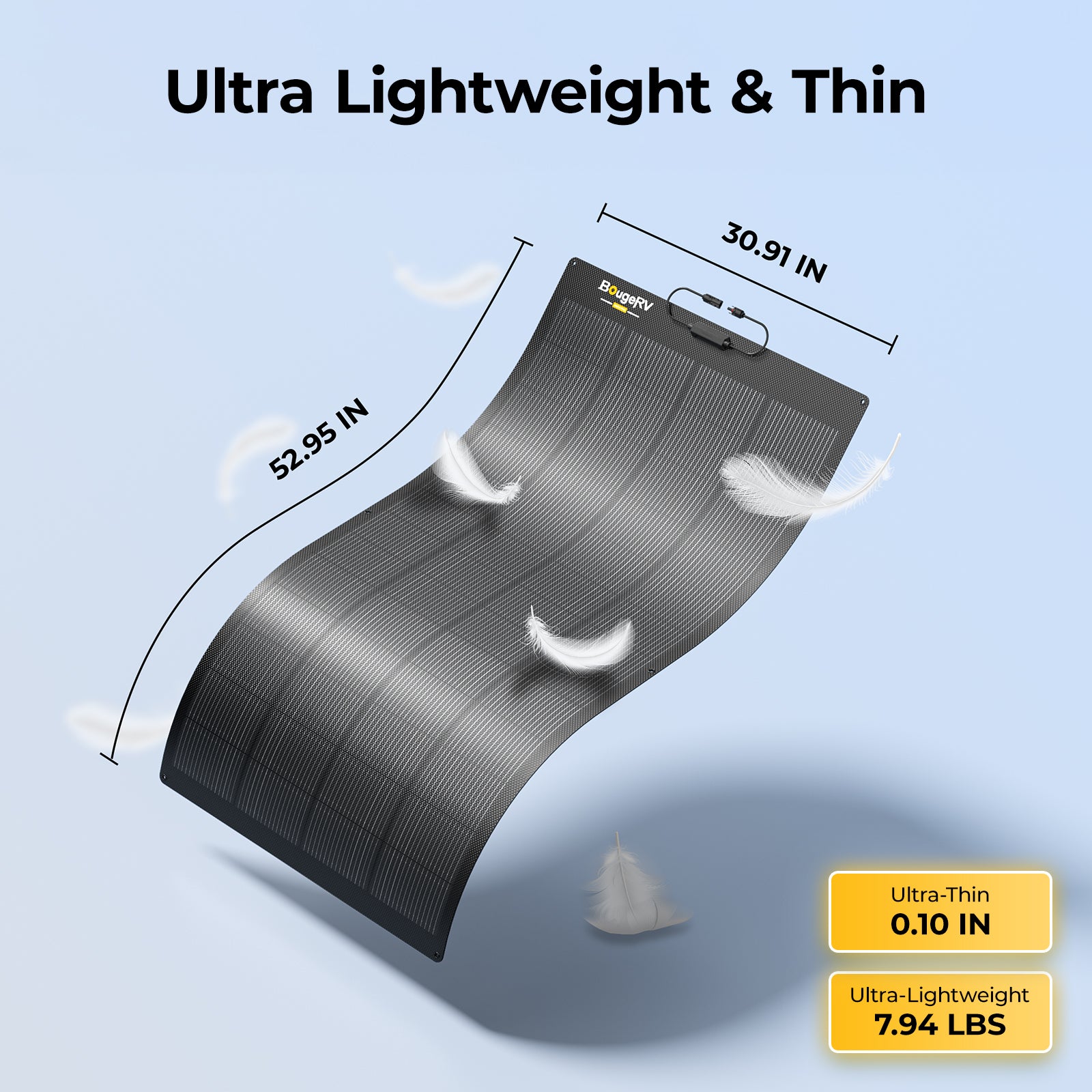

Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 31.1±5%V
Max. Power Current Imp (A) 6.43±5%A
Open Circuit Voltage Voc (V) 36.4±5%V
Short Circuit Current (Isc) 6.7±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53*31*0.1inches
Weight 7.9 lbs
SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 31.1V±5% Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 6.43A±5% Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 36.4V±5% Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 6.7A±5% Dimensions 53*31*0.01 inches
Power output warranty 25 years 80% output warranty Weight 7.9 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU SP004
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 31.1±5%V
Max. Power Current Imp (A) 6.43±5%A
Open Circuit Voltage Voc (V) 36.4±5%V
Short Circuit Current (Isc) 6.7±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53*31*0.1inches
Weight 7.9 lbs

User Manual

Reviews

Customer Reviews

Overall rating: 5.0 / 5 from 3 reviews.

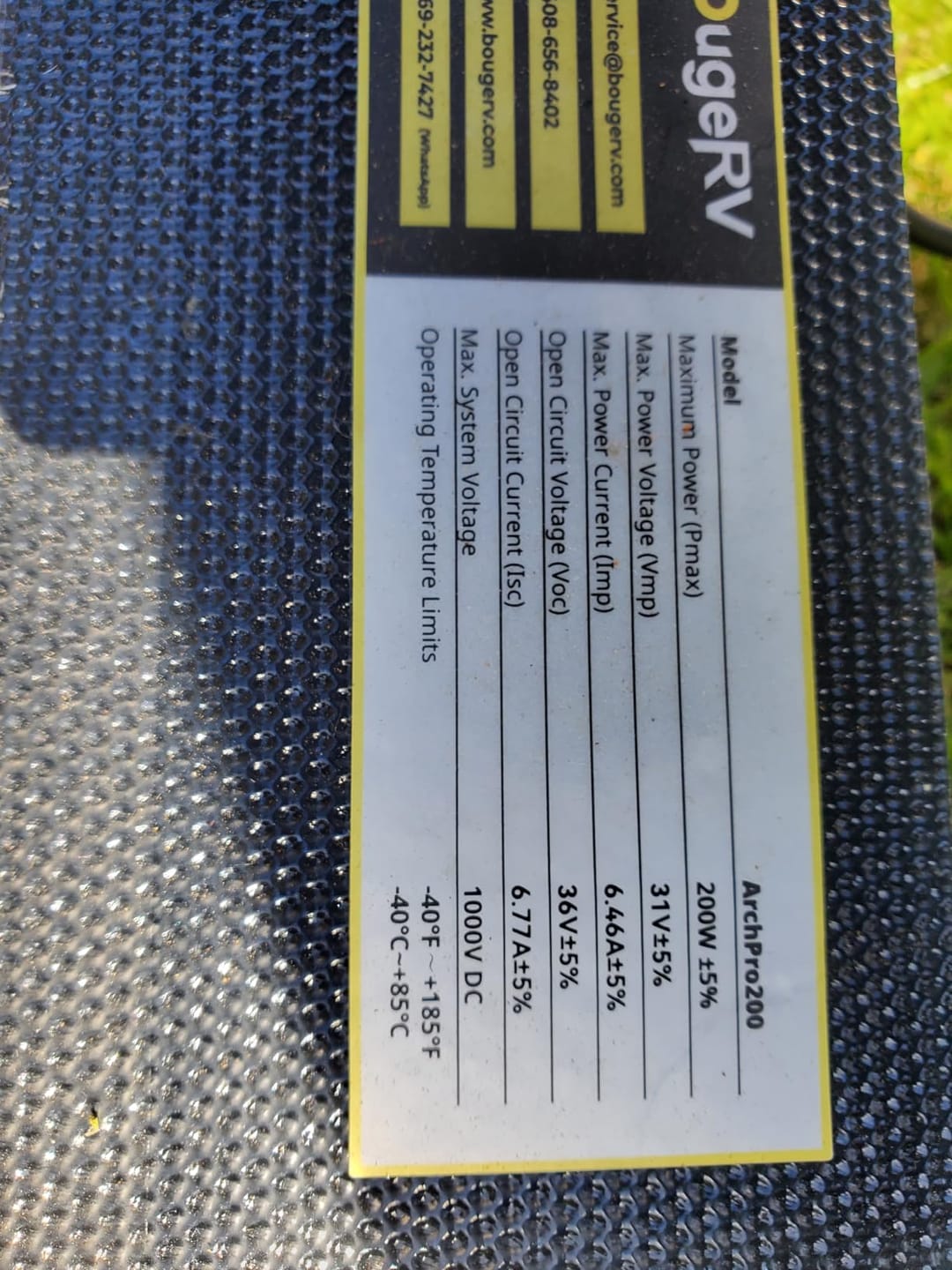

Customer photo review of BougeRV Arch Pro 200W N-Type TOPCon Flexible Solar Panel (12/24V Compatible)

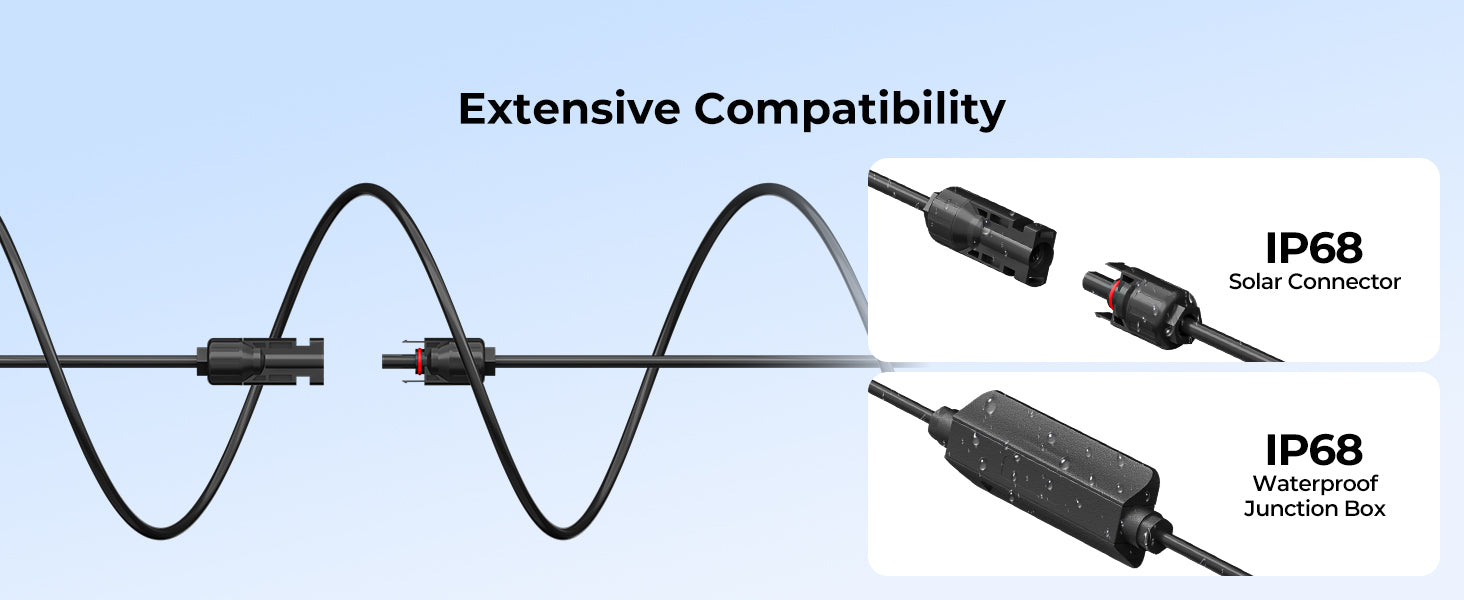

I own several BougeRV products and I was super stoked to try out their 200 watt Arch Pro portable panel. And just like all of the other products from this company this is top notch and I was not disappointed. To get this kind of power in such a lightweight form is very remarkable. It's been hooked up to my eco-flo Delta Pro 2 for about a month on a portable stand on the ground and I have been averaging between 150 and 190 Watts depending on the the Sun. It is late October early November in Michigan and to pull this kind of capacity out of a single panel is nothing short of phenomenal. I am thoroughly impressed with the craftsmanship quality and functionality of this 200 watt solar panel. It has mc4 connectors and has grommets for mounting. This would work well in a power outage and go right back into a closet for storage when you're not using it. BougeRV hits the nail on the head with this one and is probably up for best in class, I have another brand 200 watt portable solar panel that doesn't even come close to the output of this one. Time will tell for longevity but initial thoughts is five stars and highly recommend.

Shannan 5/5

BougeRV Arch Pro 200W N-Type TOPCon Flexible Solar Panel (12/24V Compatible)

FAQs

Yes, solar panels can be curved. These panels are designed to have a curved shape. They are perfect for boats, RVs, and roofs that lack the necessary flat surface for rigid solar array frames.

The decision to choose a curved solar panel or traditional solar panel depends on the specific requirements, budget, and personal preferences. The BougeRV 100W flexible solar panel, made of glass fiber, incorporates the advanced 10BB cell design and an extended lifespan for the panel.

The BougeRV 100W curved solar panel is made with high-quality 10BB cells, resulting in a remarkable 23% conversion rate, the highest in its class. This design feature not only extends the solar panel's lifespan but also enhances its efficiency.
